Chain Link Fence Protects and Decorates Garden and Sports Yard

Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.

Chain Link Fence Features and Uses: Chain link fence fabric is a versatile fencing solution for building sites, boundary fence, security fencing, partitions, storage enclosures, tennis courts, sporting fields, industrial estates etc. It is also used for hills slope and soil protection.

Chain Link Fence Weaving and Features: Uniform opening, flat surface, simple weaving and practical use. Easy and flexible for installation and connecting. Traditional Chain-Link Fencing is the ideal choice for a smart, secure, boundary fences for industry. We produce industrial chain link fences with hot-dipped galvanized, PVC coated and stainless steel wires. The most popular is galvanized chain link fence, which has good resistance to water and atmospheric corrosion. However, PVC coated chain link durability is better than galvanized fence.

Chain Link Fence Edge Types
There are three edge types to choose: knuckle - knuckle, twist - twist or knuckle - twist. Chain link fence with twist will usually add security.

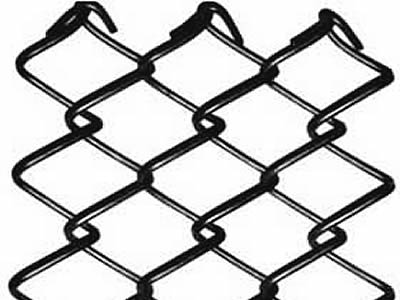

Knuckling - This term is used to describe the type of selvage obtained by interlocking adjacent pairs of wire ends and then bending the wire ends back into a closed loop. Usually knuckle is standard unless otherwise stated.

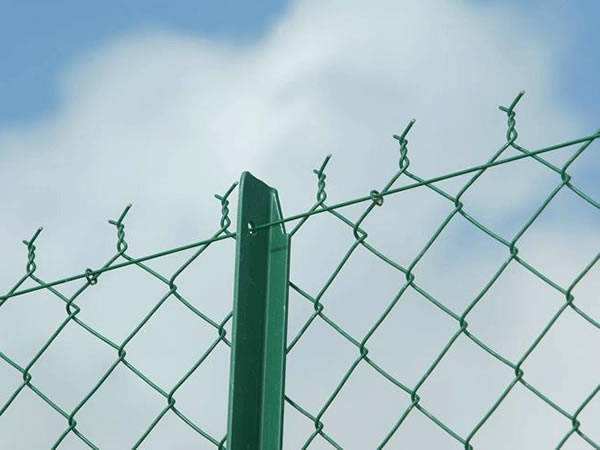

Twisting - This term is used to describe the type of selvage obtained by twisting adjacent pairs of wire ends together in a closed helix of 1-1/2 machine turns, which is equivalent to three full twists, and cuffing the wire ends at a sharp angle to provide sharp points. The wire ends beyond the twist shall be at least 1/4 inch (6.4 mm) long.

Chain Link Fence Specifications:

• Fabric wire: zinc alloy/zinc coated wire, organic material wire, or stainless steel wire.
• Tensile strength of wires
  • Low tensile (less than or equal to 600 N/m²);
  • High tensile (greater than 600 N/mm²).
  • Within any one delivered lot the tensile strength spread shall not exceed 150 N/mm².
• Chain link mesh size: 10–100 mm.
• Packaging: chain link fencing mesh in 12.5 m, 25 m or 50 m rolls.
• Chain link mesh typical roll height: 0.5 m, 0.8 m, 0.9 m, 1.0 m, 1.2 m, 1.4 m, 1.5 m, 1.8 m, 2.0 m, 2.1 m, 2.4 m, 2.5 m, 3.0 m, 3.5 m, 3.6 m, 4.0 m.

Table 1: Typical Chain link fencing mesh dimensions and tolerance, typical wire sizes and tolerance on height

Mesh		Nominal wire diameter (mm)	Tolerance on height (mm)
Size (mm)	Tolerance (mm)
Zinc alloy/zinc coated
25	±2.0	2.0; 2.50	±30
40	±4.0	2.0; 2.50; 3.00; 3.55	±30
45	±4.0	2.0	±30
50	±4.5	2.0; 2.20; 2.50; 3.00; 3.55; 5.00	±40
60	±5.0	2.00; 2.20; 2.50; 3.00; 3.55; 5.00	±50
75	±5.0	2.50; 3.00	±60
Organic material (extruded) coating over a zinc/zinc alloy coated or bright wire
25	±2.0	1.90/2.65	±30
40	±4.0	1.90/2.65; 2.00/3.00; 2.25/3.15; 2.50/3.55	±30
45	±4.0	1.70/2.50; 1.80/2.70; 1.90/2.65; 2.25/3.15; 2.50/3.55	±30
50	±4.5	1.70/2.50; 1.80/2.70; 2.00/3.00; 2.25/3.15; 2.50/3.55; 3.00/4.00; 3.55/4.75; 4.75/6.40	±40
60	±5.0	1.70/2.50; 1.80/2.70; 2.00/3.00; 2.20/3.40; 2.50/3.80; 2.80/4.20; 3.10/4.60; 3.80/5.00	±50
75	±5.0	2.00/3.00; 2.25/3.15	±60

Which fence should I buy, galvanized or PVC coated chain-link fencing?

If you want chain link fence stood 30-40 years, then you should buy only the fence with a wire diameter of 3 mm - 4 mm. If you want to have a more attractive appearance should buy the PVC coated fence. Just need protecting against corrosion, you can choose fence with galvanized. If you plan to put fence into hostile environments: near the sea or in the acid factory area. Please buy PVC coated chain link fence. Because sea salt air and acid atmosphere very quickly corrode zinc surface, but they cannot cope with the polymer coating.

What is the best chain link fence for me?

Our galvanized wire and PVC coated chain link fence has the best durability and resistant to corrosion. We have this fencing in various wire diameters for different application. It is listed as below:

• For chicken poultry, Gal. Wire 1.5 mm. PVC coated 1.0 mm, chain wire dia. 2.5 mm.
• For garden and tennis courts, Gal. Wire 2.0 mm. PVC coated 1.5 mm, chain wire dia. 3.5 mm.
• For road fence, Gal. Wire 2.5 mm. PVC coated 1.3 mm, chain wire dia. 3.8 mm.
• For sea side and oil field, Gal. Wire 3.5 mm. PVC coated 1.5 mm, chain wire dia. 5.0 mm.

How to order a chain link fence? When order chain link fence, you should keep some catalog in mind in order to get the right products. Below are the catalog and parameters.

1. Materials: Galvanized, PVC (Black, Dark green, Brown, Gray), Stainless Steel, Aluminum Chain Link Fences.
2. Wire Diameters: Common Wire Gauges are 9, 10, 11.
3. Fence Height: Common Height: 3, 4, 5, 6, 7, 8, 10, 12 ft.
4. When installing the chain link fence, the fence accessories are necessary. The order should include the numbers of them, such as, corner posts, end posts, brace, clamps, Rail.

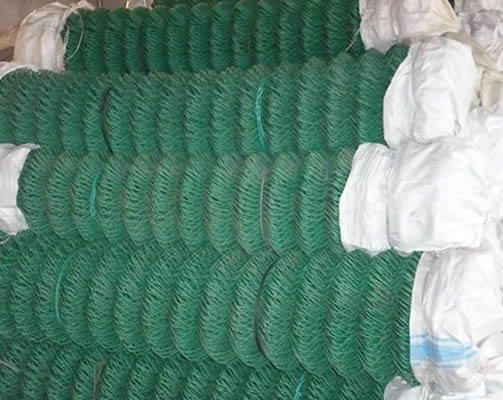

5. Packages for fencing and accessories. We usually transport the fencing in rolls and accessories in decking.

Chain link PVC coated fence complete set with good packing system

1. Main post, with description/include:
   Pipe 2 inch × 3000 mm LG; Sch.40; Straight; c/w Cap.
   Include anchored bar 10 mm.
   Heavy galvanized with galvanized thickness of 300 gr/m².
2. Beam post, with description/include:
   Pipe 1-1/2 inch × 3000 mm LG; Sch.40; Straight.
   Include rail end welded galvanized, 5mm thickness.
   Heavy galvanized with galvanized thickness of 300 gr/m².
3. Chain link galvanized + PVC gray
   Wire diameter: 3.0 mm, 4.0 mm.
   Mesh: 50 mm × 50 mm (knuckle - knuckled).
   Dimension / roll: 1.8 m × 20 meter/roll.
4. Barbed wire galvanized + PVC gray
   Core Wire Diameter:3.0 mm/4.0 mm.
   Barbed Wire Dia.: 3.0 mm/4.0 mm.
   Dimension / roll: 50 meters/roll.
5. Single long wire galvanized + PVC gray
   Wire diameter: 3.0 mm/4.0 mm.
   Dimension / roll : 1000 meters/roll.
6. Rail end band/ring fitment
   Steel plate 5 mm thickness, Bolt,washer and nut 5/16" dia. - 1-1/4" LG.
   Heavy galvanized with galvanized thickness of 300 gr/m².

Chain Link Fence Gate

With more and more attention on decorative style and creativity, chain link fence gate is widely used to decorate yards, gardens and to protect their property. The chain link fencing materials are durable and cost low and no maintenance.

Chain Link Fence Gates Have Five Types: Walk Gate, Single Gate, Double Swing Gate, Cantilever Gate And Roll Gate.

Here are chain link gate installation steps and tips.

• First: under the instructions, make a gate framework and the first part attached on the sliding belt. Then sliding parts are assembled door frame with your hands.
• Second: sliding a rod into the fence and through a coil.
• Third: attach the tension band and slide the second lever into the mesh. Make sure you slide it close enough to the opposite side rail to hold the mesh taut once you attach it to the tension bands.
• Fourth: unhook the strand of mesh that's near the outside second tension bar and pull it out, removing the excess mesh with pliers.
• Fifth: pull the mesh along with tension band tightly while slipping the tension bar into the tension bands on the frame of the gate with pliers, if the net is not tight enough the lever to into go to the next set of loops. Unravel the excess mesh and hook the bar back into the tension bands.
• Final: attach the tie line to the benchmarking of the top and bottom once the mesh is fixed in one place. A Cable line in the mesh around the hook with pliers, pulled the network cable has been slightly higher than the door frame to the network. Ensure let the tie cord around freely in the mesh around with pliers.
• Tips: his metal hardware must be ready to complete. In order to switch the gates must be to the height of the ground.

Hot products

• 316L stainless steel chain link fence with 3" × 3" inch mesh, 4' × 480'.
• Chain link fence (Zinced ) in rolls 55 mm × 55 mm × 1.8/2.0/2.2/2.5 mm × 1.5 m × 10 m.
• Chain link fence (Zinced +PVC coated) in rolls 55 mm × 55 mm × 2.8/3.0/3.2 mm × 1.5 m × 10 m.
• Chain link fence (hot dipped galvanized): roll 1.20 /1.50/1.80/2.00 mt × 25 mt wire BWG 14 × 50/57 mm opening.
• Aluminised chain link mesh (wire thickness: 4 mm thick), length: 1100 meters, mesh size: 10 mm × 10 mm, height: 3 meters.
• Chain link wire mesh for farm and livestock, size is 50 mm and the height of chain link wire mush is 1410 mm. The thickness of wire mesh is 3 mm, and after PVC coated it would be 4 mm.
• Double galvanised chain link fence wire diameter 4.0 mm, wire mesh 50 mm × 50 mm, width 2.5 m, package 25 m/roll.
• Reinforced playground chain fencing 12' height for a basketball court application.
• Chain mesh rolls on light and heavy gauge product 50 mm diamond, 1200, 1500, 1800, 2100, 2400 mm high. And 1650 and 1500 mm pickets in black dip galvanised.
• Cyclone wire fence with the following specification: height = 3, 4, 5, & 6 feet, diamond = 50 mm @ 10 m length and 100 mm @ 6 m length, wire diameter/thickness = 2 mm.
• 2.75 m high chain link system wire with mesh size 3.55 mm × 2.5 mm all galvanised for sports fence used in tennis court.
• Rolls of 3.5 mm gauge chain link fencing, appro× 2 m high coated in black.
• Galvanized plus black PVC chain link fence 4 feet high to go around a pool and lazy river and splash pad area.
• SS Chain Link for fitting to high raise building windows. Approx. mesh opening size - 3 to 4\" made of 16 SWG SS 304L wire.
• 12' long × 8' high chain link temporary fence panels with base units and fence clips.
• Privacy slats especially for the 9 wire gauge 2 inch chain link fences. I would like to know about material you use and prices
• Chain link wire mesh 3.67 mm thick galvanized steel wire formed in holes 9.5 mm diamond mesh pattern.

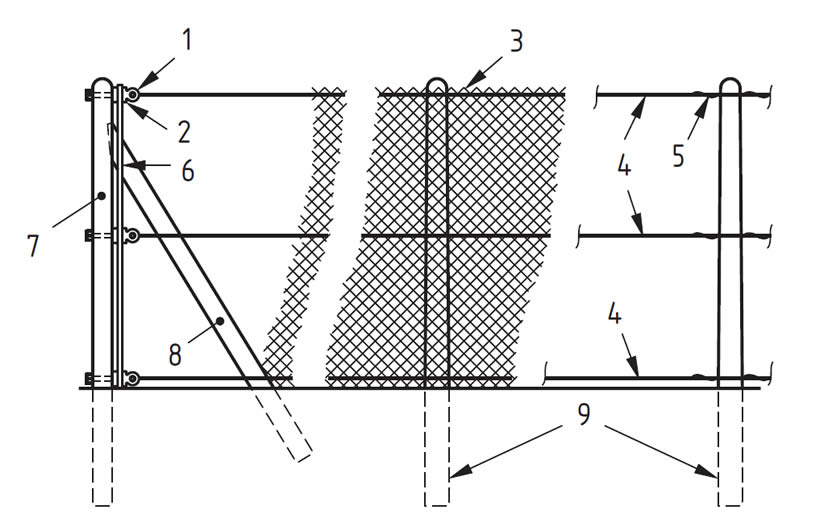

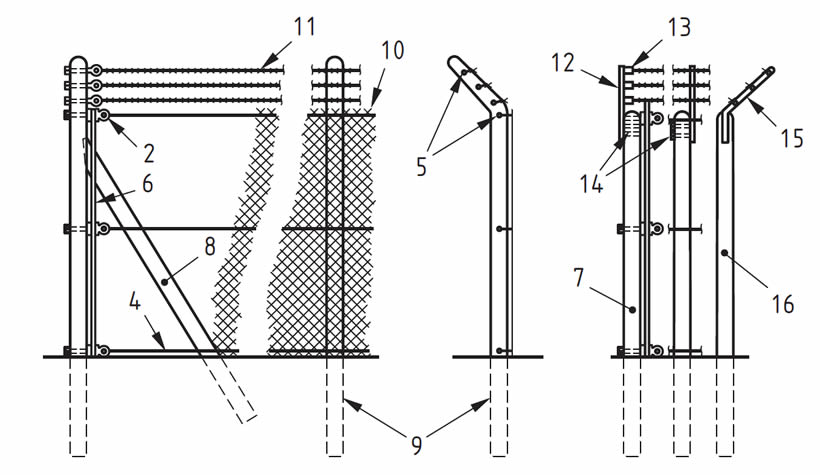

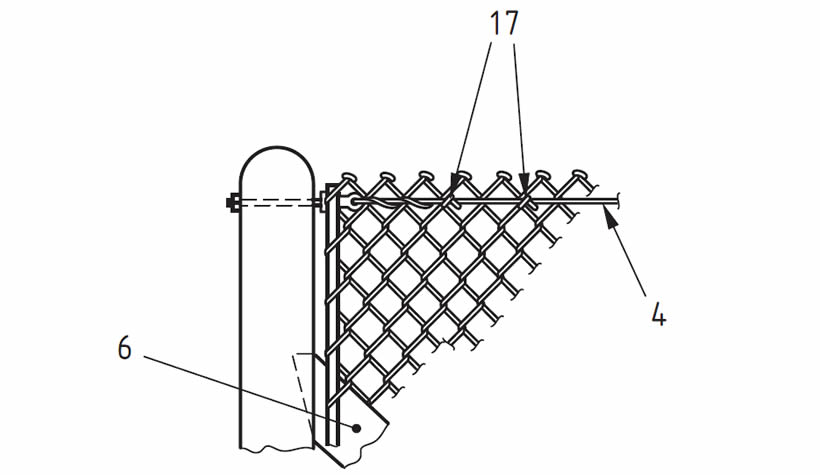

The following three pictures show installation details of chain link fence with or without extension arms for barbed wire, and details of mesh at straining post.

Key

1. Eyebolt.
2. Cleat.
3. Mesh.
4. Line wire.
5. Stirrup.
6. Stretcher bar.
7. Straining post.
8. Strut.
9. Intermediate posts.
10. Barbed top mesh (if specified).
11. Barbed wire.
12. Steel angle extension arm.
13. Winder or eyebolts.
14. Bolts.
15. Steel flat extension arm.
16. Intermediate post.
17. Wire ties.
